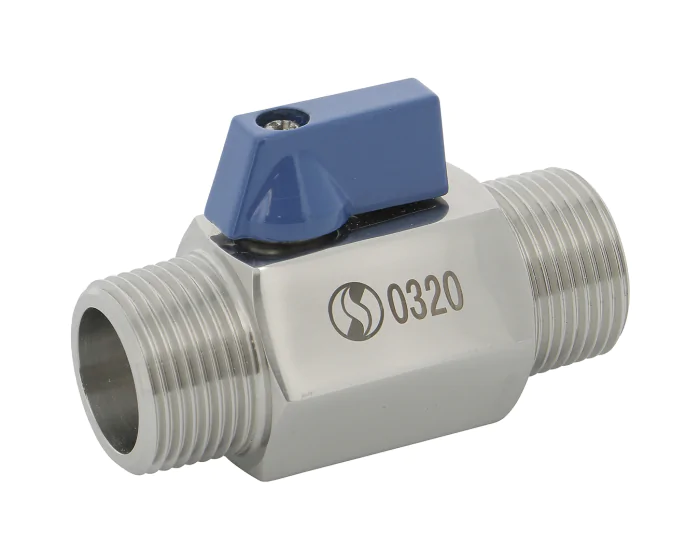

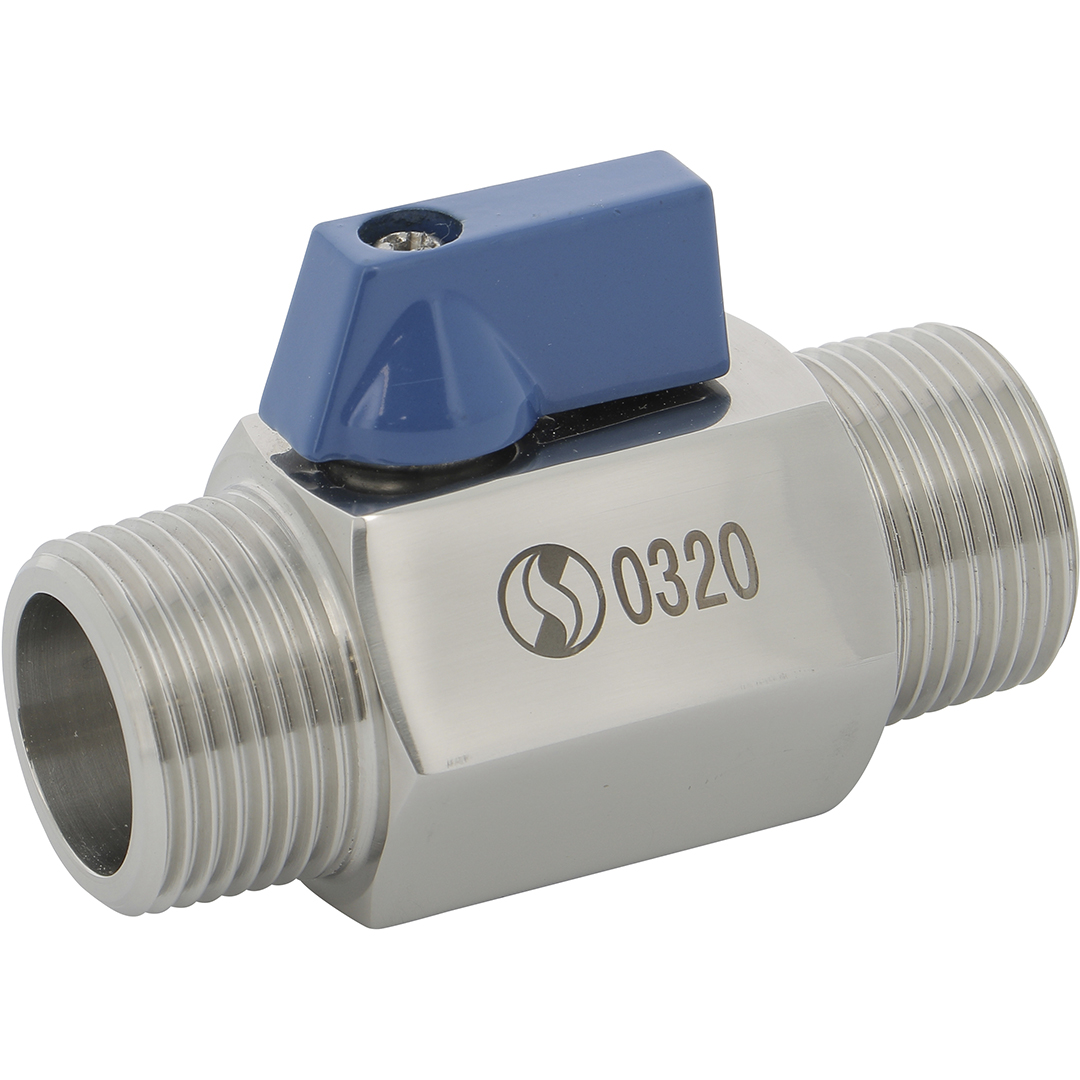

1 piece body polished stainless steel reduced bore mini ball valve, BSP male
| Specification | Value |
|---|---|
| DN inches NPS | 1/8'' |
| Option certificate 3.1 | Yes |
| Thread standard | ISO 7-1 R |
| Opening device | Lever |
| Application | Industry |
| DN | DN5 |
| Face to Face (mm) | 570.0 |
| Fluid | Acids |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Reduced |
| PS (bar) | 63 |
| Connections | BSP MM |
| Seats | PTFE |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Warranty period | 2 years |
| Handle type | Blue handle |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP MM Stainless steel CF8M (1.4408) Reduced 1/8'' | 732MM001 | S1008024 |
€9.87
(excl. btw)
|
add to cart |
| BSP MM Stainless steel CF8M (1.4408) Reduced 1/4'' | 732MM002 | S1008025 |
€9.87
(excl. btw)
|
add to cart |
| BSP MM Stainless steel CF8M (1.4408) Reduced 3/8'' | 732MM003 | S1008026 |
€9.87
(excl. btw)
|
add to cart |
| BSP MM Stainless steel CF8M (1.4408) Reduced 1/2'' | 732MM004 | S1008027 |
€11.80
(excl. btw)
|
add to cart |
| BSP MM Stainless steel CF8M (1.4408) Reduced 3/4'' | 732MM005 | S1008028 |
€16.03
(excl. btw)
|
add to cart |
| BSP MM Stainless steel CF8M (1.4408) Reduced 1'' | 732MM006 | S1008029 |
€19.44
(excl. btw)
|
add to cart |
